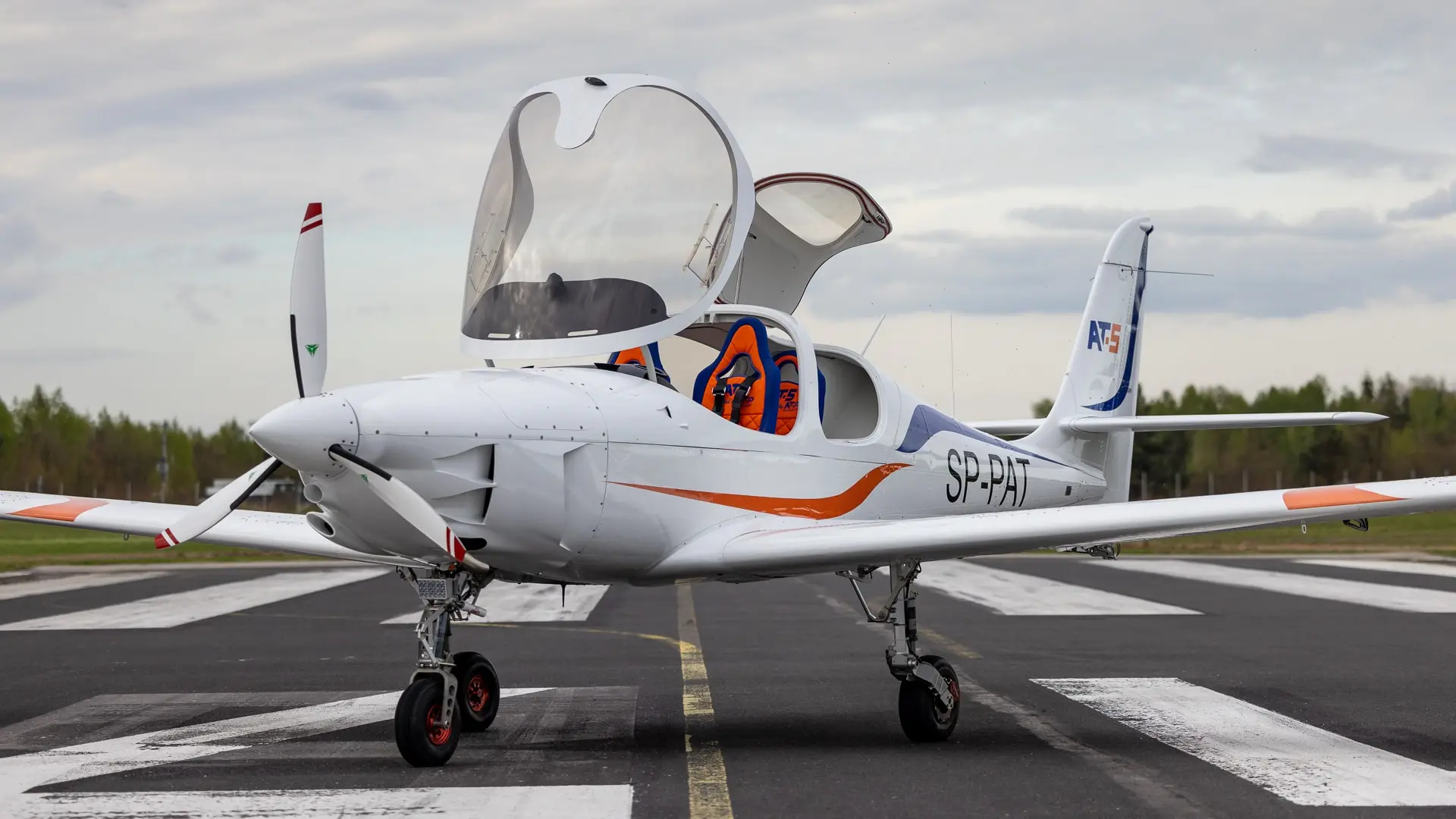

AT-5
Aircraft that define the future of training and private aviation.
The AT-5 is the answer to modern aviation needs. Four seats, metal construction built to withstand years of intensive use. Equally capable of training future pilots and serving business flights. Polish design tested by the best – created for those who don’t compromise.
Specification
The AT-5 takes students from first takeoff to commercial license For private pilots: Weekend with family? Business trip? The AT-5 is ready for anything For business: When every flight hour and every dollar counts – the AT-5 delivers
Dimensions
9.70 m
WINGSPAN
7.80 m
length
2.81 m
height
10.17 m2
WING AREA
1.20 m
CABIN WIDTH
Mass
880 kg
MTOW
580 kg
EMPTY MASS
300 kg
PAYLoad
Speeds
216 kph
maneuvering speed
298 kph
maximum speed
93.5 kph
minimum speed
145 kts
cruise speed
333 kph
diving speed
333 kph
never-exceed speed
1000 fpm
vertical speed
1200 ft/min
rate of climb
49 kts
Vmin
Engine
FL 180
ceiling
1500 km
range
Rotax 915 iS3
minimum engine
140 HP
cruise power
MOGAS
fuel
138 l
fuel capacity
3-blade
propeller
MTV-34-1-A-175-200
propeller type
Maneuvers
Spins
to be approved
Stalls
to be approved
Conditions
VFR
to be approved
VFR Night
to be approved
IFR
to be approved
Efficient and economical
Flying on Mogas and turbocharged allowing for a fast and efficient cruise up to FL180, with additional under-wing fuel tanks available.
